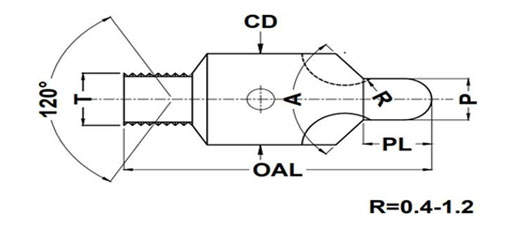

| Designation | OAL | CD | A | PD | PL | F | T |
|---|---|---|---|---|---|---|---|
| SP-CS-PCD-2.4/10/100 | 36-38 | 10 | CSK 100° | 2.4 | 5-10mm | 2 | M6X1 |
| SP-CS-PCD-3.2/10/100 | 36-38 | 10 | CSK 100° | 3.2 | 5-10mm | 2 | M6X1 |
| SP-CS-PCD-4/10/100 | 36-38 | 10 | CSK 100° | 4 | 5-10mm | 2 | M6X1 |
| SP-CS-PCD-4.8/14/100 | 36-38 | 14 | CSK 100° | 4.8 | 5-10mm | 2 | M8X1 |
| SP-CS-PCD-5/14/100 | 36-38 | 14 | CSK 100° | 5 | 5-10mm | 2 | M8X1 |
| SP-CS-PCD-6/14/100 | 36-38 | 14 | CSK 100° | 6 | 5-10mm | 2 | M8X1 |
| SP-CS-PCD-6.35/17/100 | 36-38 | 17 | CSK 100° | 6.35 | 5-10mm | 2 | M8X1 |
| SP-CS-PCD-8/17/100 | 36-38 | 17 | CSK 100° | 8 | 5-10mm | 2 | M8X1 |
| SP-CS-PCD-10/21/100 | 36-38 | 21 | CSK 100° | 10 | 5-10mm | 2 | M8X1 |
| Customized size can be done as per the customer requirement. | |||||||
