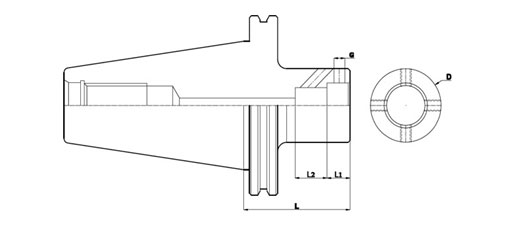

| Taper Size | Designation | GPL (L) | L1 | L2 | OD(D) | G |
|---|---|---|---|---|---|---|
| SK-30 | SP-SK-3M-43 | 40 | 11 | 16 | 30 | M5 |
| SP-SK-3M-44 | 40 | 13 | 18 | 40 | M6 | |
| SK-40 | SP-SK-4M-44 | 40 | 13 | 18 | 40 | M6 |
| SP-SK-4M-64 | 60 | 13 | 18 | 40 | M6 | |
| SP-SK-4M-55 | 50 | 13 | 21 | 50 | M6 | |
| SK-50 | SP-SK-5M-64 | 60 | 13 | 18 | 40 | M6 |
| SP-SK-5M-65 | 60 | 13 | 21 | 50 | M6 | |
| Customized size can be done as per the customer requirement. | ||||||
